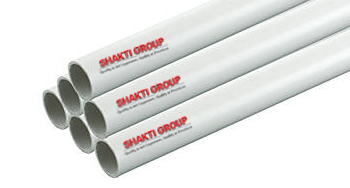

Conduit Pipes
Conduit Pipes
Concealed electrical wiring has become the norm of the day in modern construction. For safety and security of the installation, conduit pipes of different strengths are used to encase the wiring and placed in grooves carved on the brick surface, before the walls and ceilings are plastered and cemented.
Since the conduit pipes are inlaid, they should remain intact for the life of the building.
Specifications :
- Range : 16 mm to 63 mm
- Type : Light, Medium & Heavy mechanical Stress
Conduit Fittings :
- BEND
- COUPLER
Application:
Used in electrical wiring purposes within residential complexes, offices etc.
Advantages :
- Non conductor of Electricity & low thermal conductivity.
- Because of the smooth interior surface, wire pulling is so easily done.
- Light weight material.
- Fire retardant.
- Corrosion resistant.
- High tensile and impact strengths.
Conduit Pipe Dimension Chart (As Per IS 9537 Part III)
|
Size |
Light Mechanical Stress |
Medium Mechanical Stress |
Heavy Mechanical Stress |
Socket |
|||||||
|
ID of Pipe |
Wall Thickness |
ID of Pipe |
Wall Thickness |
ID of Pipe |
Wall Thickness |
OD |
ID |
||||
|
Min |
Min |
Max |
Min |
Min |
Max |
Min |
Min |
Max |
Max. |
Range |
|
|
16 |
13.7 |
1.00 |
1.15 |
13.0 |
1.35 |
1.50 |
12.2 |
1.75 |
1.90 |
20.1 |
16.1 - 16.3 |
|
20 |
17.4 |
1.15 |
1.30 |
16.9 |
1.40 |
1.55 |
15.8 |
1.95 |
2.10 |
24.5 |
20.1 - 20.3 |
|
25 |
22.1 |
1.25 |
1.45 |
21.4 |
1.60 |
1.80 |
20.6 |
2.00 |
2.20 |
29.8 |
25.1 - 25.4 |
|
32 |
28.6 |
1.50 |
1.70 |
27.8 |
1.90 |
2.10 |
26.6 |
2.50 |
2.70 |
37.8 |
32.1 - 32.4 |
|
40 |
35.8 |
1.9 |
2.1 |
35.4 |
2.1 |
2.3 |
34.4 |
2.6 |
2.8 |
46.1 |
40.1 – 40.5 |
|
50 |
45.1 |
2.2 |
2.45 |
44.3 |
2.6 |
2.85 |
43.2 |
3.15 |
3.4 |
57.3 |
50.1 – 50.5 |
|
63 |
57.0 |
2.7 |
3.00 |
- |
- |
- |
- |
- |
- |
- |
63.1 – 63.6 |
