Suction Pipes

You are here : Home Products   Suction Pipes

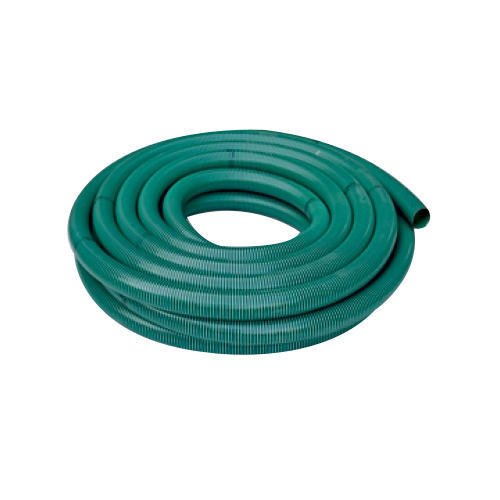

PVC Medium Duty Suction Hose Pipe

Product Details :

Minimum Order Quantity :100 Kilogram
Meterial: PVC
Application: Water Supply in Agriculture and Irrigation and Conveyance and Delivery of waste,slurry,sludge
Brand : Madhav Flex and Excel Flex
Normal Size : 1 inch, 3 inch, 2 inch, 3/4 inch
Unit Length : >30m
Color : Green
Bursting Pressure(Kg/cm2): 9.0-20.0
Diameter : 3/4 - 6 inch or 20-150 mm
Length : 30 m
Working Pressure(Kg/cm2) : 3.0-10.5
Weight : 5.20-170 Kg

Manufacturer, Exporter and Supplier of UPVC Column Pipes

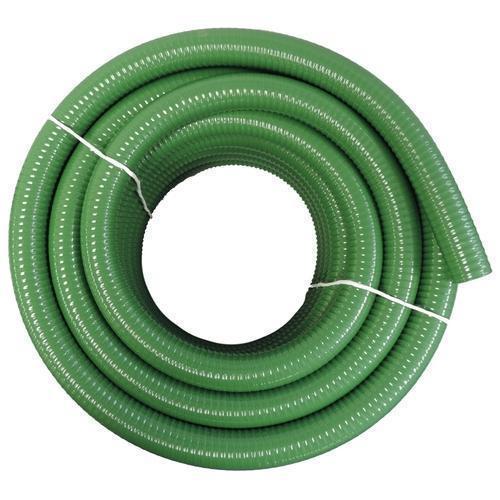

PVC Suction Hose Pipe

Being a client-centric organization, we are engaged in supplying PVC Suction Hose Pipe. Our highly skilled professionals manufacture this pipe from optimum quality basic material and progressive technology in line with defined industry parameters. Before its final dispatch, the offered pipe is thoroughly checked by our quality controllers against various quality parameters. Our respected patrons can avail pipe at an affordable price as per their specific requirements.

Manufacturer, Exporter and Supplier of UPVC Column Pipes

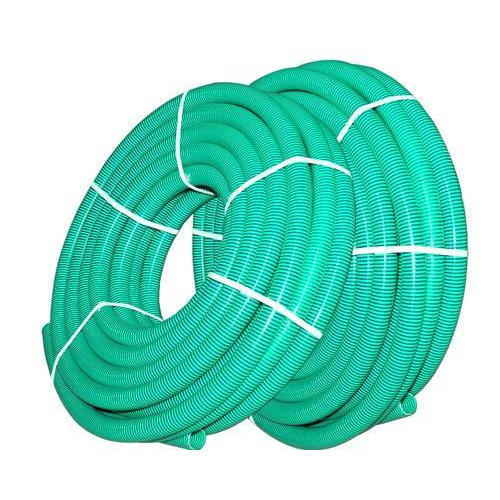

PVC Delivery Hose Pipe

Product Details :

Minimum Order Quantity :100 Kilogram
Packaging Type : Roll
Application : Normal Irrigation - General Pumping
Type : >Hoses
Weight : 5-200kg
Dimension : 3/4 - 6 inch or 20-150 mm
Flexible : YES
Material : PVC

Manufacturer, Exporter and Supplier of UPVC Column Pipes

Application:

  • Useful in Industry and Construction
  • Water Supply in Agriculture and Irrigation.
  • Ventilation and Air Conditioning
  • Air Suction in Buildings, Factories, and Mines
  • Normal Irrigation - General Pumping
  • Conveyance and Delivery of waste, slurry, and sludge
  • Suitable for the Cultivation of plants and Marine Industries

Feaures:

  • Crack Resistant.
  • Easy to handle.
  • Low operation cost.
  • Strong and Durable.
  • Light Weight and Flexible.
  • Better Flow Characteristic.

Specification :

Wall ThicknessWorking PressureBursting PressureKg/Mtr.Mtrs.
MM.InchMM. (± 0.5/± 1.0 )(Kg/cm2) @ 30°CKg/cm2 @ 30°CApprox.
20 ± 0.53⁄4 "310.5200.1830
25 ± 0.51"3.59180.2230
30 ± 1.011⁄4"3.78160.3230
40 ± 1.011⁄2"47.5150.430
50 ± 1.02"4.56150.6730
65 ± 1.021⁄2"4.55.513130
75 ± 1.03"55131.3330
100 ± 1.54"64.5102.3430
125 ± 2.05"7393.8415/18/22/30
150 ± 2.06"8395.6715/18/22/30
